CV/ADAM Developers RS-232 for CGP/Project Name By Line

[RGDiRocco]

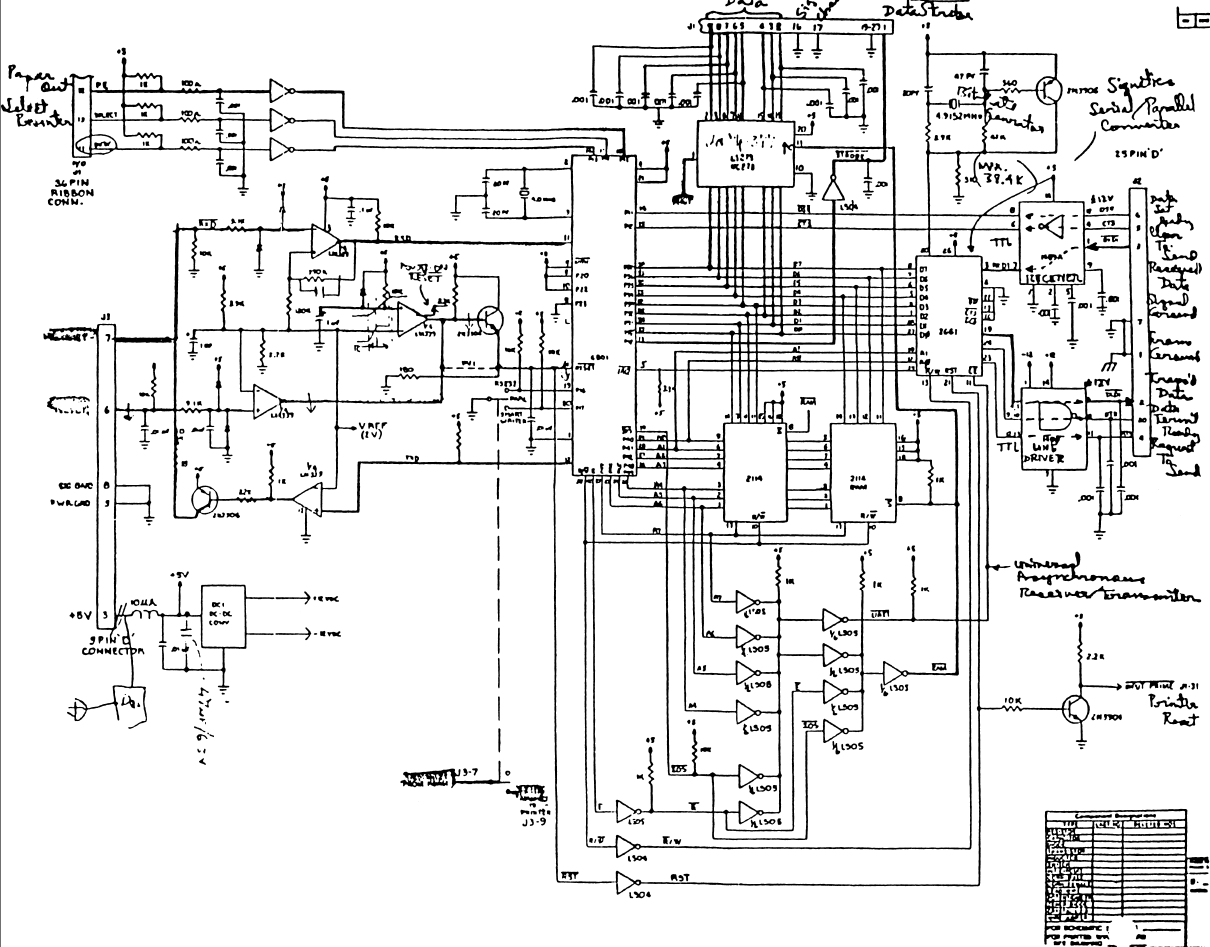

Has anyone ever constructed a unit from the released schematics for this unit?

I know there are a few protoypes from Coleco out there.

Screenshot 2025-11-22 121333.png (455.48 KiB) Viewed 584 times

[RGDiRocco]

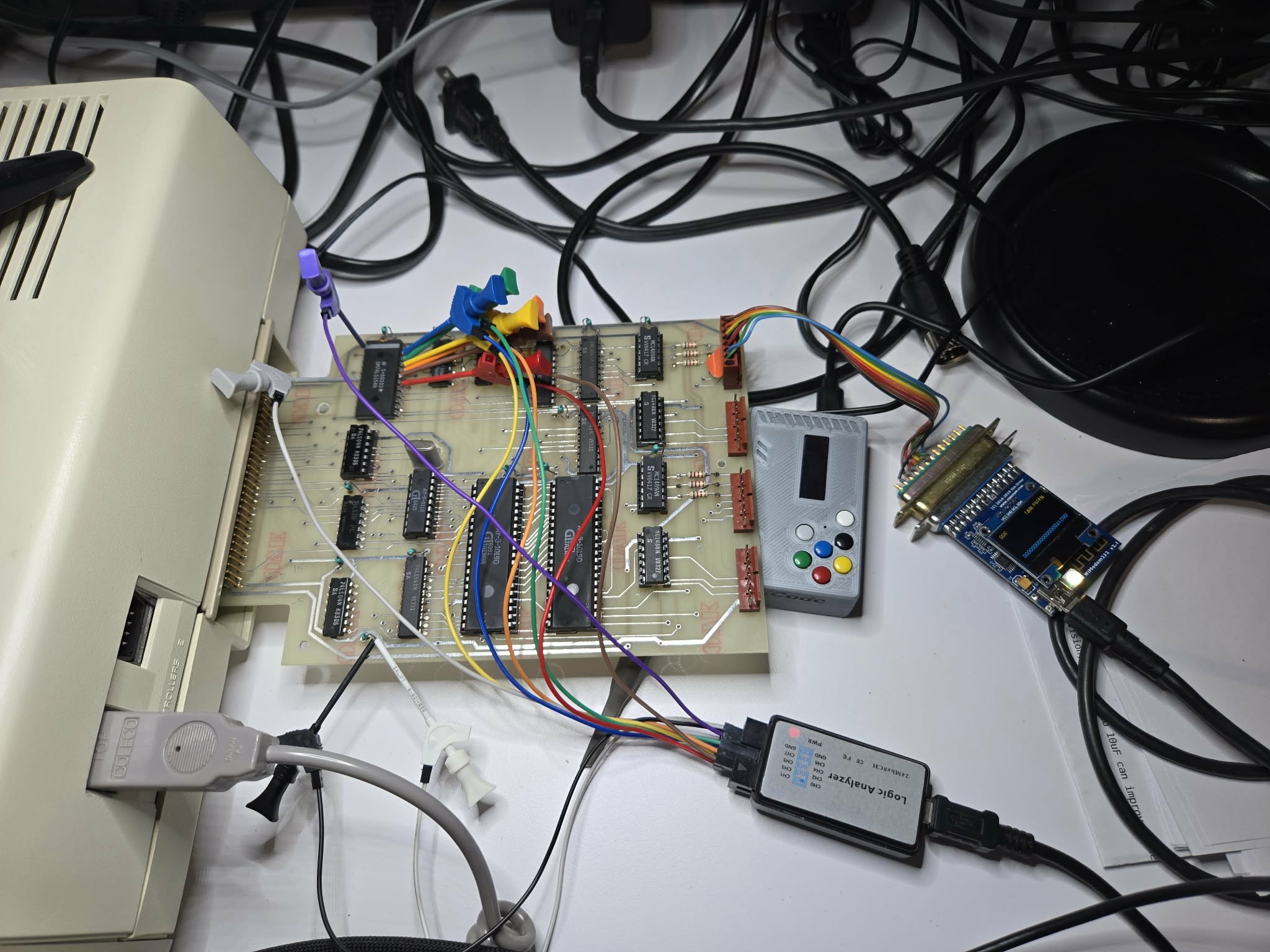

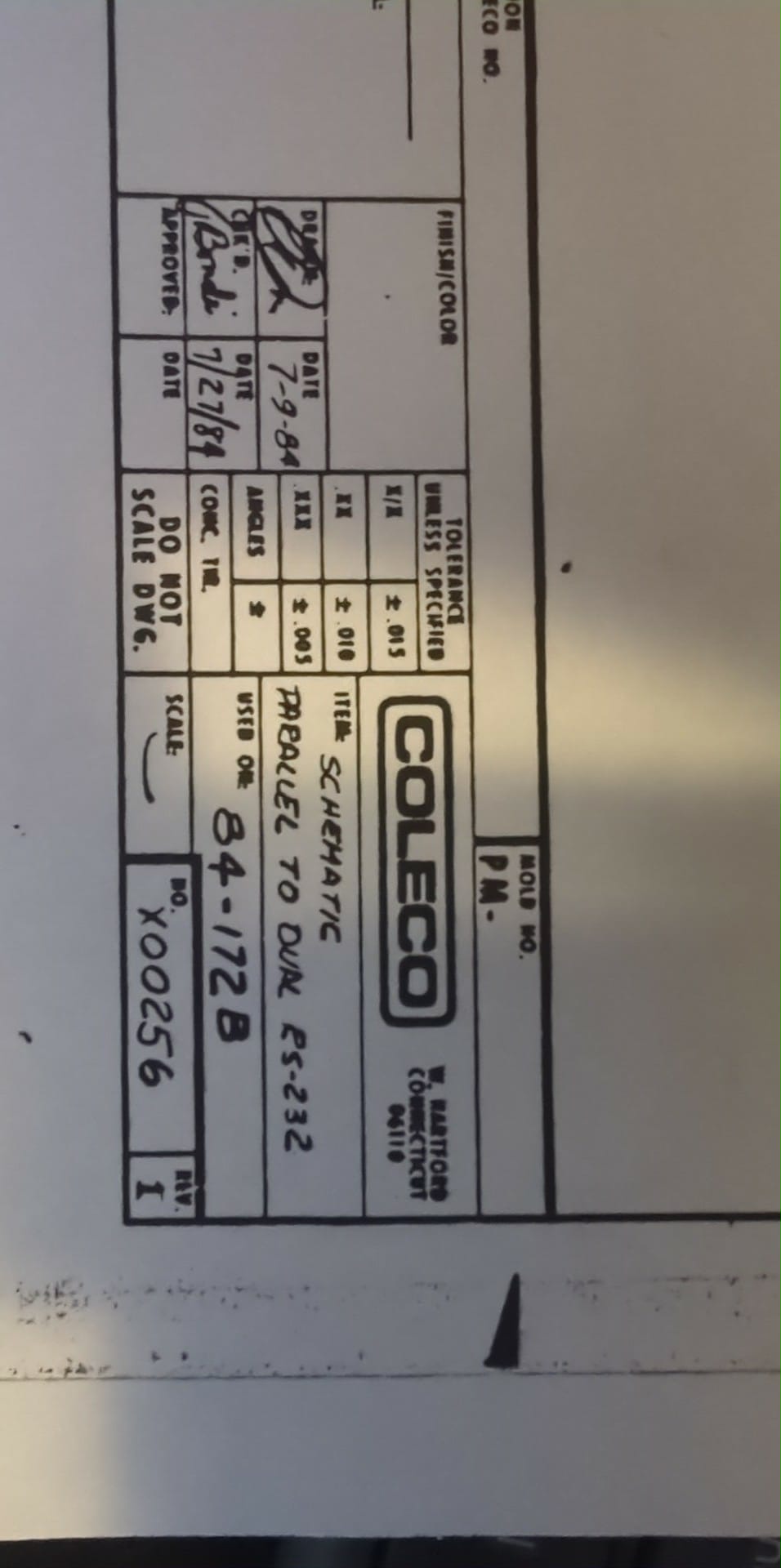

A new Original schematic arrived today for a side port unit. I was suprised that I had actually purchased one of the unit a year ago, not knowing what it was. Turns out the Production Numbers match!!!!!

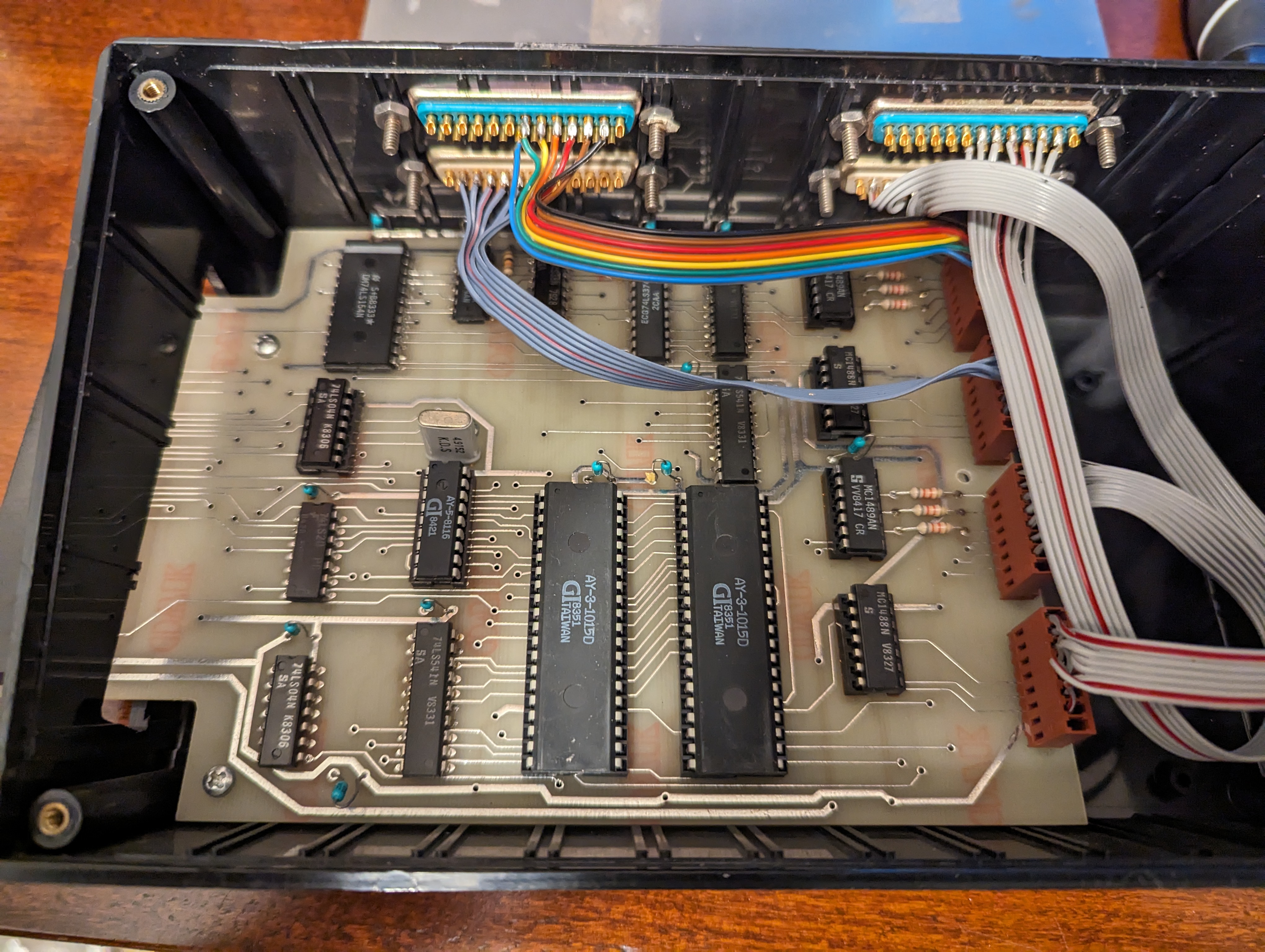

ColecoVision ADAM Prototype Module (2).jpg (2.63 MiB) Viewed 526 times

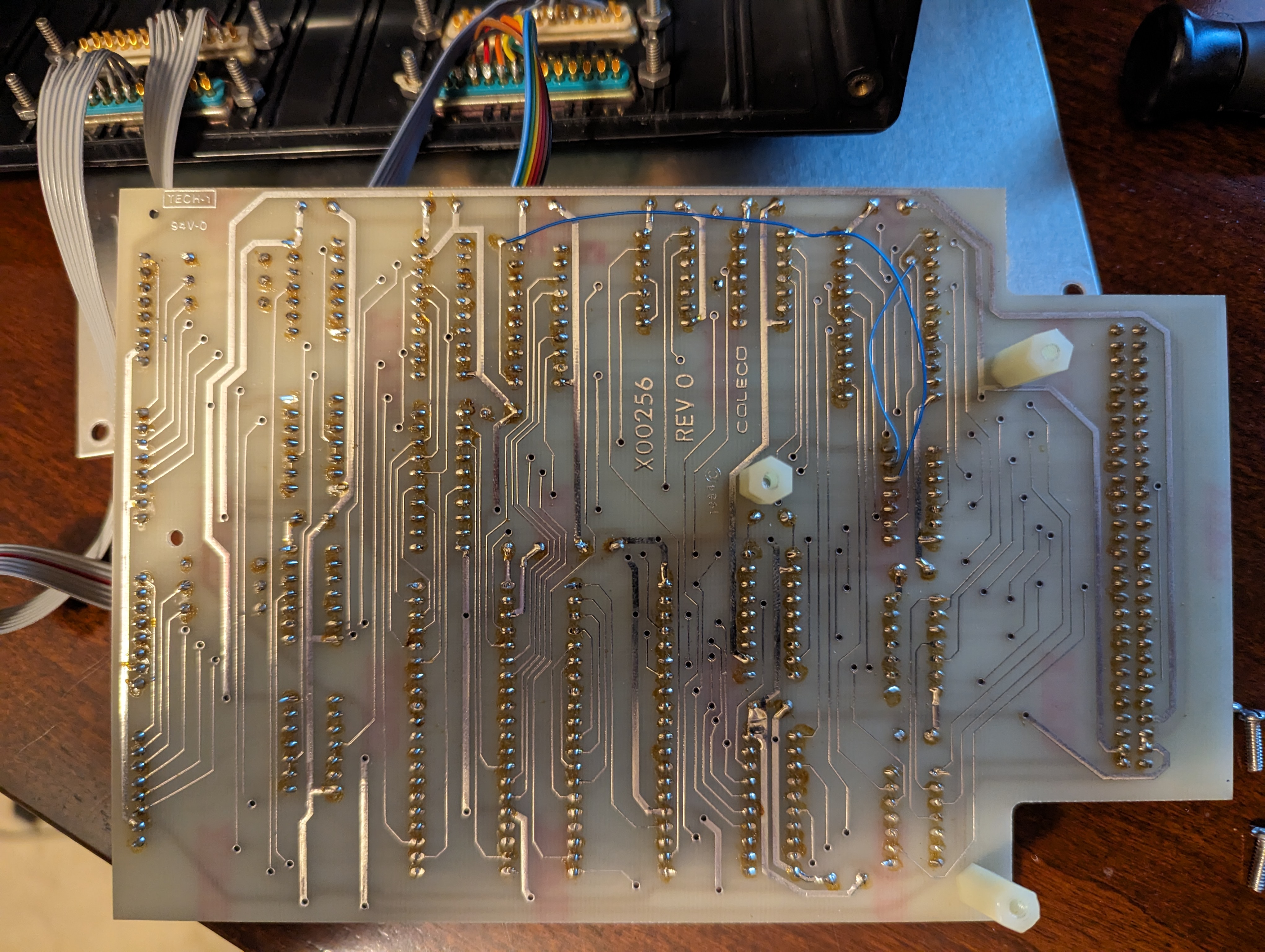

ColecoVision ADAM Prototype Module (1).jpg (2.84 MiB) Viewed 526 times

[admin]

Great News and information coming. John Lundy of LundyElectronics.com was able to test and repair this unit. We are now further analysing it and its relation to the software that utilized it Coleco Graphics Processor (C.G.P.)/Project Name By Line.

Muchmore to come.

Jump in and provide your insight and feedback.


[admin]

Attached is a preliminary review of the project. We would appeciate any constructive feedback and insight you can provide!!!!

Coleco_Development_Tools_Documentation_v4.6.pdf

(3.35 MiB) Downloaded 154 times
