Micro Innovations SASI/SCSI Prototypes

[RGDiRocco]

A while back I was able to purchase scrap cards left over from the days of Micro Innovations and acquired by eColeco. These cards sat for a while and we debated across different platforms and forums.

Recently following a visit by the Slopsemas to the ColecoVision & ADAM Museum these cards we pulled for review.

Stay tuned for continued discussion and information!!!!!!

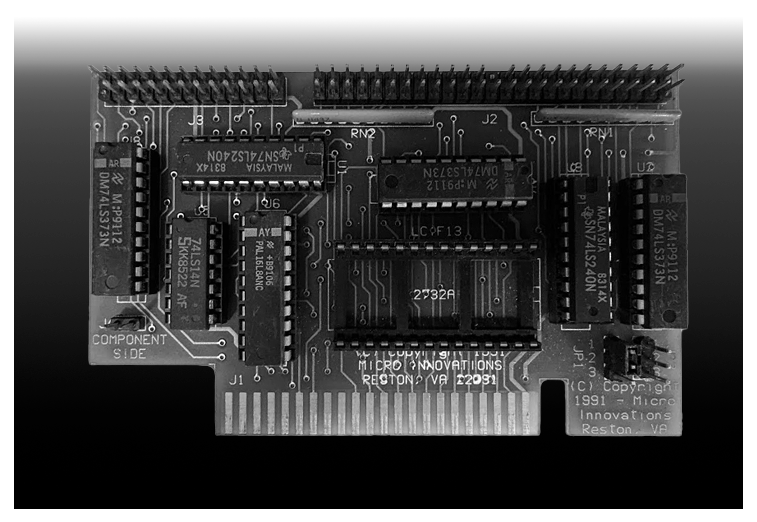

Coleco ADAM Micro Innovations SASI-SCSI .png (375.63 KiB) Viewed 534 times

[RGDiRocco]

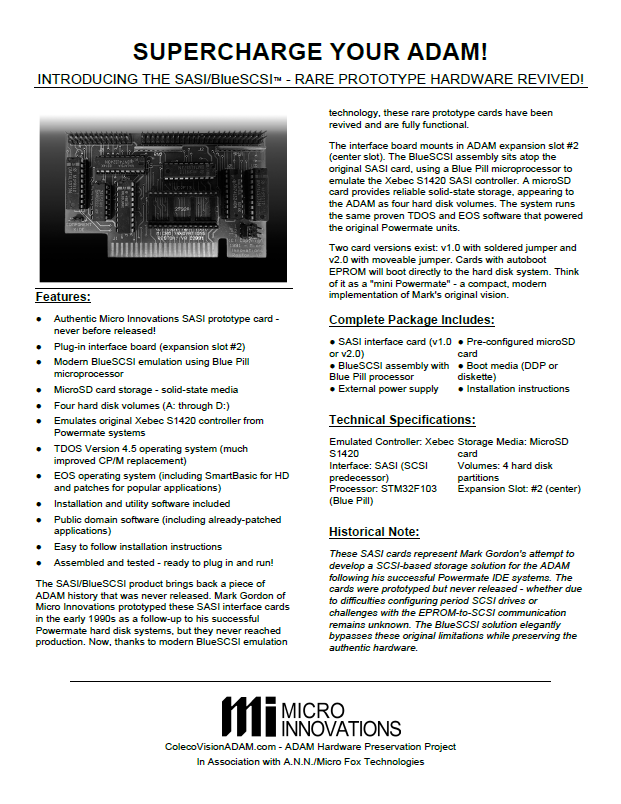

A quick highlevel on these cards!!! (In M.I. Sales sheet style)

Coleco ADAM Micro Innovations SASI-SCSI (info).png (192.5 KiB) Viewed 533 times

[RGDiRocco]

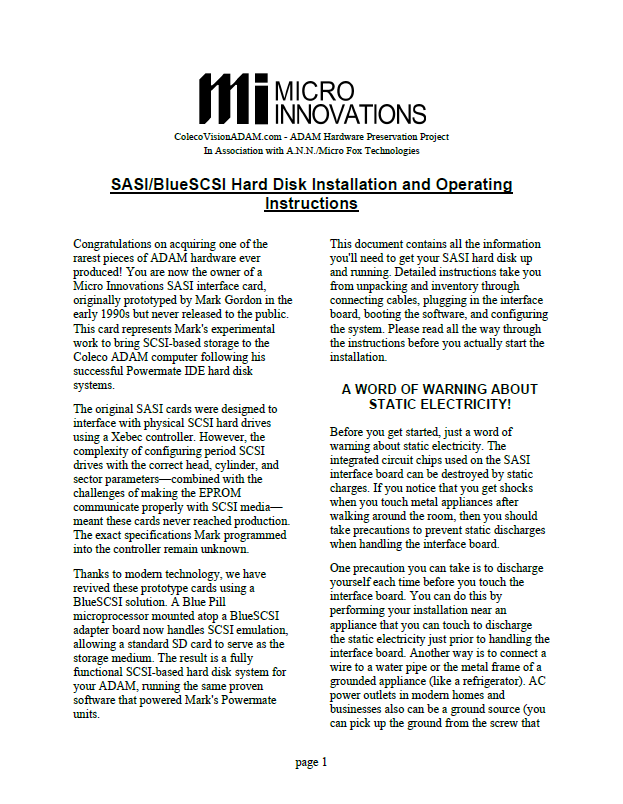

Coleco ADAM Micro Innovations SASI-SCSI (Manual).png (142.77 KiB) Viewed 533 times

A sneak peek into the workings!!!!

[RGDiRocco]

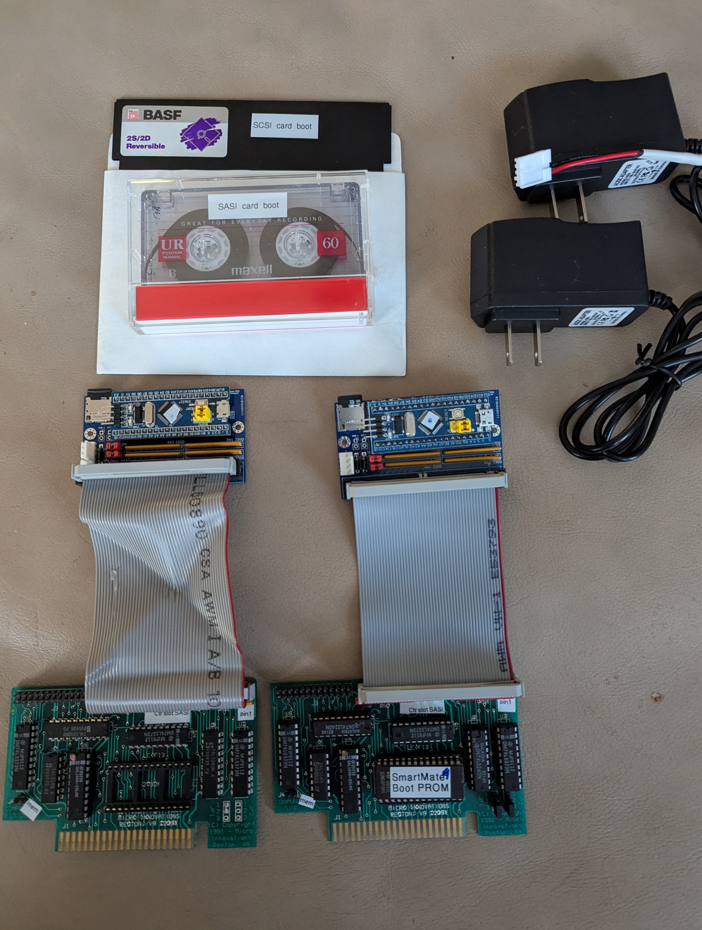

Coleco ADAM Micro Innovations SASI-BlueSCSI.png (1.04 MiB) Viewed 533 times

The GREAT MicroFox Solution!!!

[RGDiRocco]

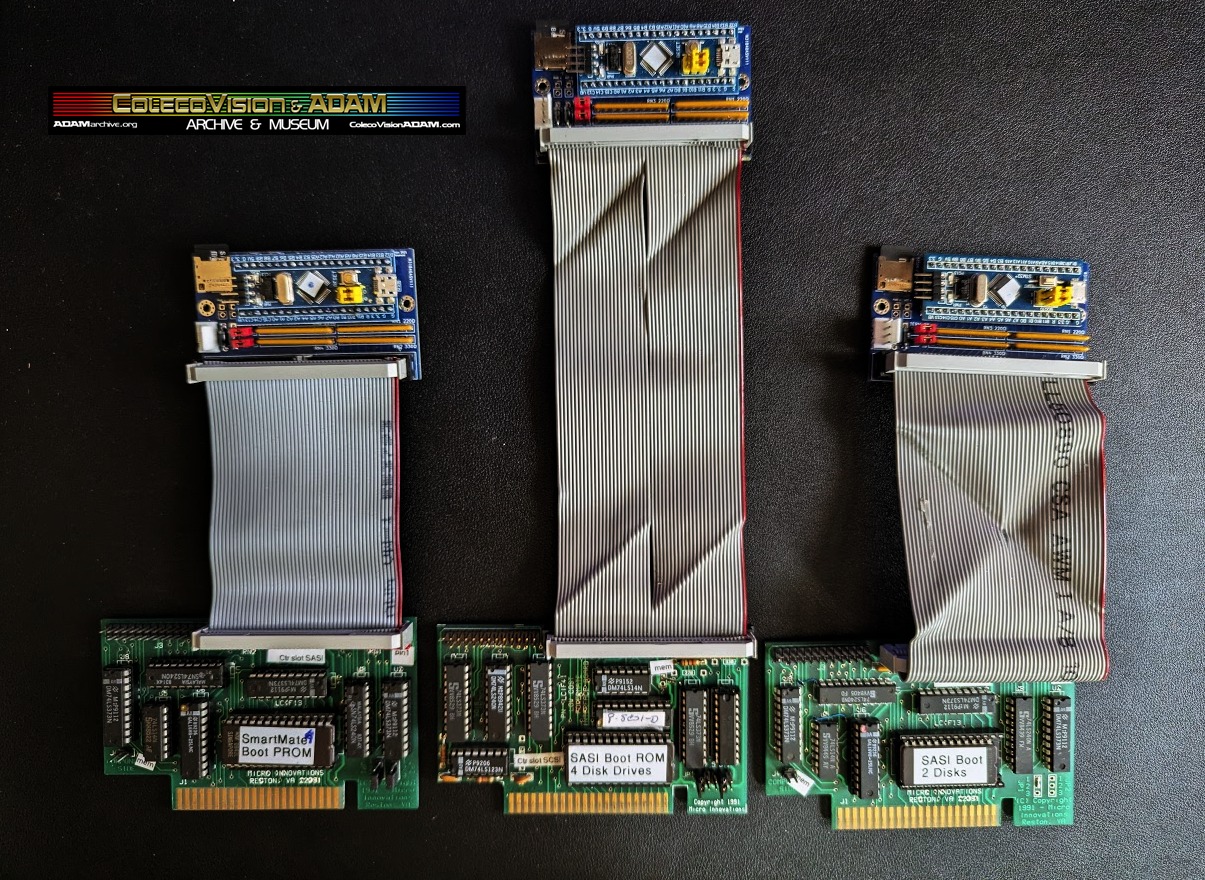

Doug deleivered 2 additional SASI cards this week with some interesting EPROM adaptations. Allowing the SASI to boot either with the Walters SmartMATE software or load the the AJM Hard Disk Manager with several different configurations (2-Disk & 4-Disk). Allowing you to have Drive #3 or #4 be the boot source.

I have so many differently configued ADAM's it would be nice to have these EPROMS and a auto-detecting program on each computer/config..........stay tuned
